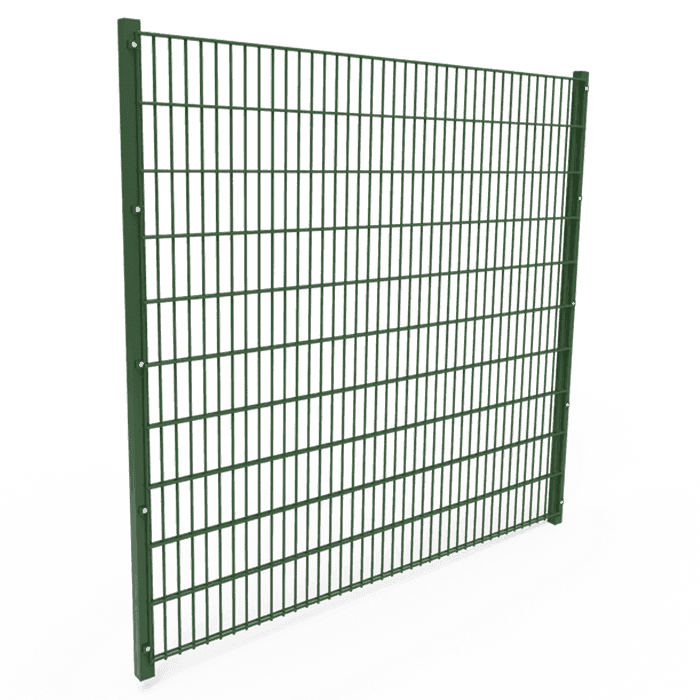

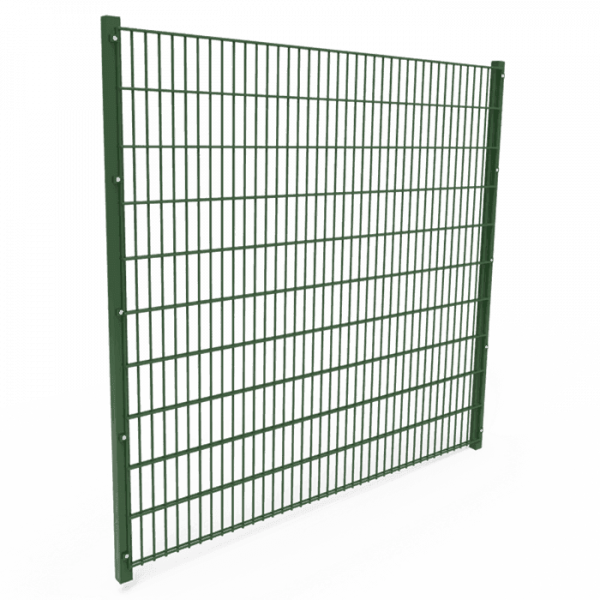

Double Wire Fence – Perfect Security Fence with High Visibility

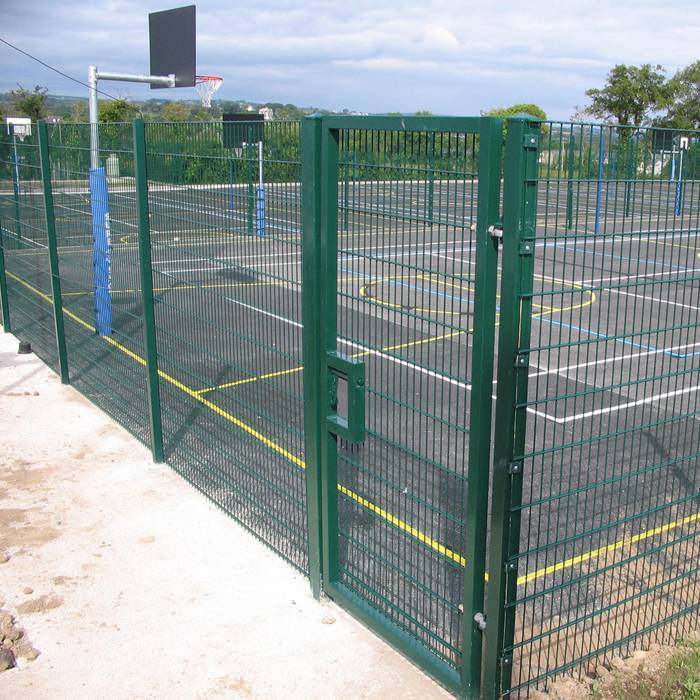

Double wire fence, also known as twin wire fence, is a kind of specially designed welded wire fence with double horizontal wires welded to single vertical wire. Its unique structure makes it stronger and more durable than single wire fence. Our double wire fence is made of high quality carbon steel wires with a diameter of 6/5/6 mm or 8/6/8 mm. Typically, our double wire fence cannot come with folds because of its vertical wire is too strong for bending. Besides, galvanized or powder coating treatment gives the double wire fence excellent corrosion and rust resistance performance and a long service life. Double wire fence is very popular in European markets and is widely used in various residential, commercial and industrial applications, including but not limited to, playgrounds, schools, communities, gardens, parks, etc.



  • It has both flat top and arch top design patterns for you to choose from.
  • Double horizontal wires are welded firmly to the vertical wire to form a ridge structure.
  • Its large mesh opening provides both high visibility and excellent security.
  • It provides a competitive price while maintaining high quality, rigidity and a long life service.
  • Its galvanized or powder coating surface give excellent rust & corrosion resistance to withstand various harsh environment conditions.
  • The galvanized and powder coating treatment allows the double wire fence working properly for nearly 10 years.
  • It has double horizontal wires to provide more rigidity and durability, so that it will not damage easily and require less maintenance.


A> Height:630 mm, 830 mm, 1030 mm, 1230 mm, 1430 mm, 1530 mm, 1630 mm, 1730 mm, 1830 mm, 1930 mm, 2030 mm, 2230 mm, 2430 mm

B> Width:2000 mm, 2500 mm, 3000 mm

C> Wire Diameter:6/5/6 mm, 8/6/8 mm

D> Mesh Opening:50 × 100 mm, 50 × 150 mm, 50 × 200 mm, mm, 55 × 200 mm, 75 × 100 mm

E> Clamp:metal clamp

F> Post:Round post (48 OD × 1.5/2.0 mm, 60 OD × 1.5/2.0 mm);
Square post (50 × 50 × 1.5/2.0 mm, 60 × 60 × 1.5/2.0 mm, 80 × 80 × 1.5/2.0 mm);
Rectangular post (40 × 60 × 1.5/2.0 mm, 40 × 80 × 1.5/2.0 mm, 60 × 80 × 1.5/2.0 mm, 80 × 100 × 1.5/2.0 mm)

G> Post Cap:metal cap / anti-UV plastic cap


  • All colors are available in Ral;
  • Other materials and specifications are available upon request.


Surface Treatment

According to its surface treatment, our double wire fence can be divided into two types as shown below.

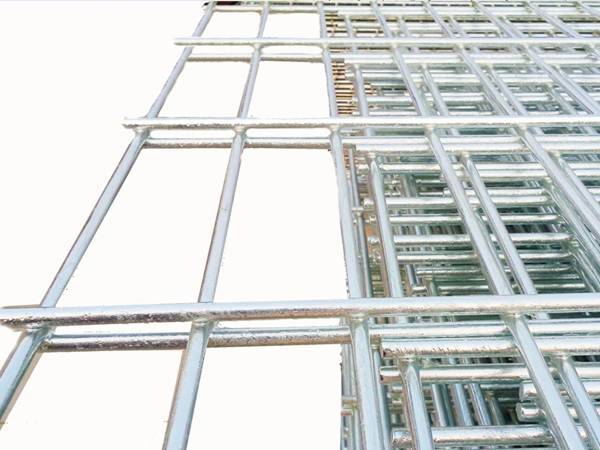

Galvanized double wire fence

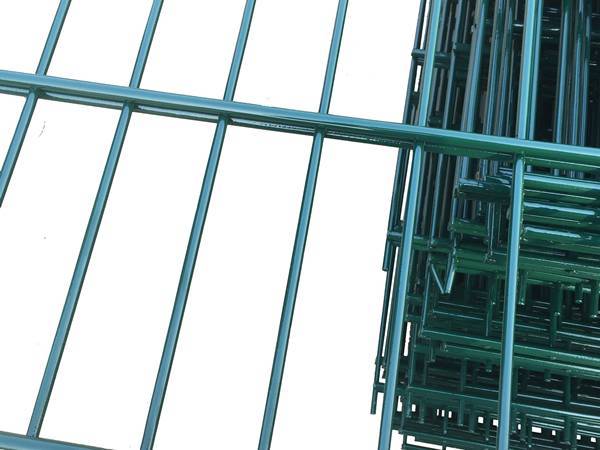

Powder coating double wire fence

Top Edge

According to the shape of its top edges, our double wire fence can be divided into two types as shown below.

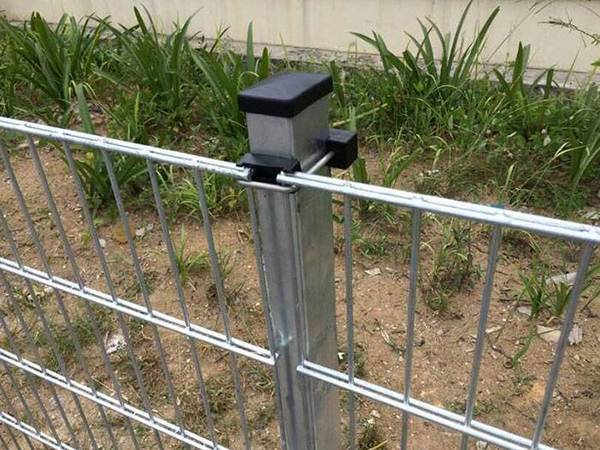

Flat top double wire fence

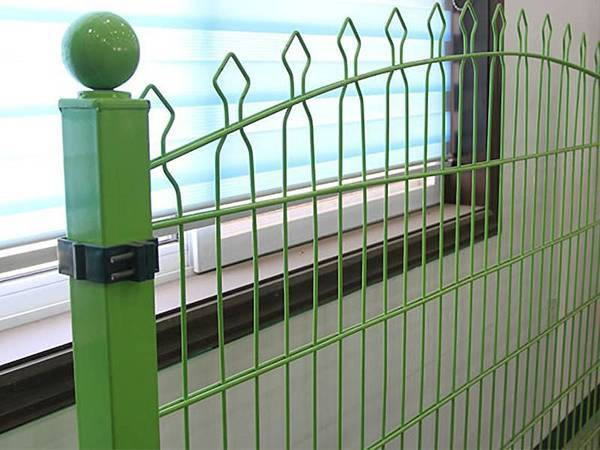

Arch top double wire fence

Components & Accessories

The main components and connection methods of our double wire fence are as shown below.

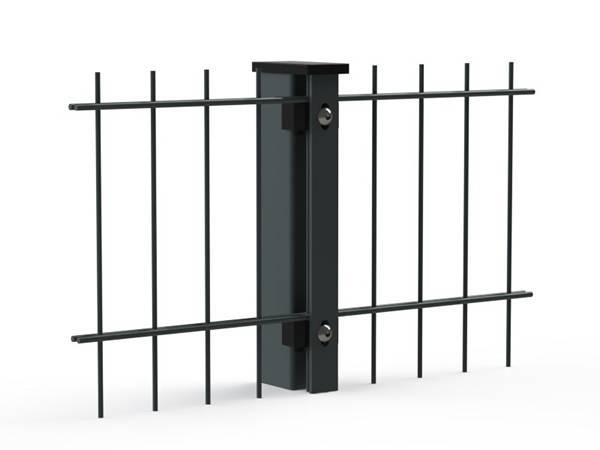

Clamp bar connection

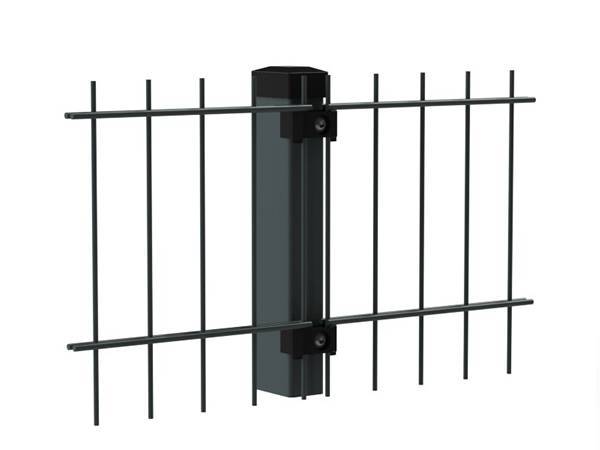

Metal clamp connection

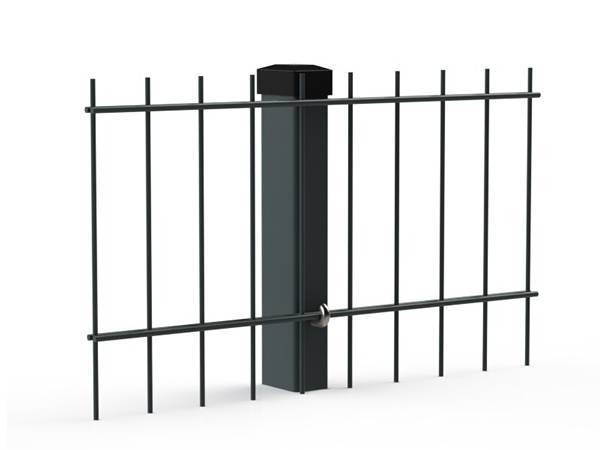

J bolt connection

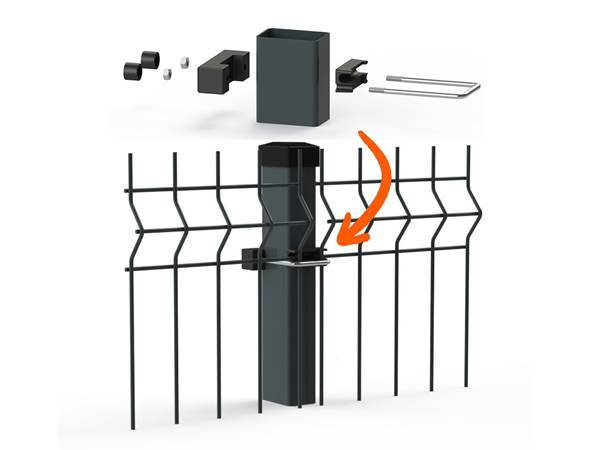

U bolt connection

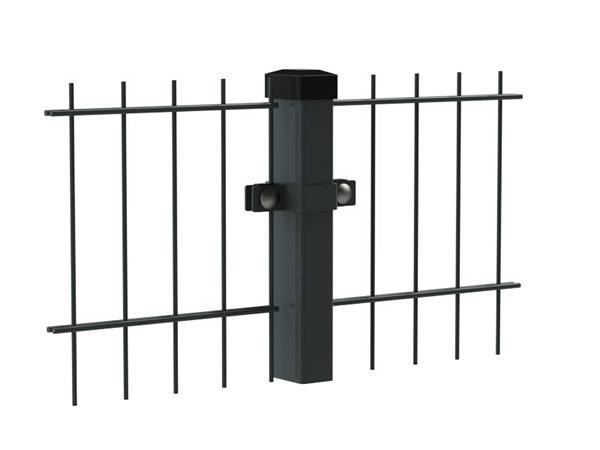

Square clamp connection

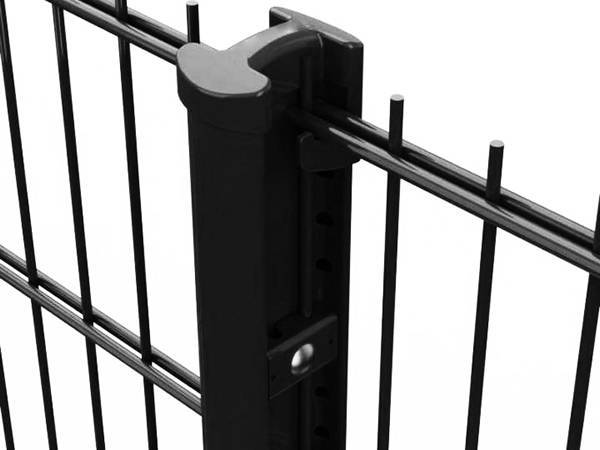

I post connection

Optional Accessories

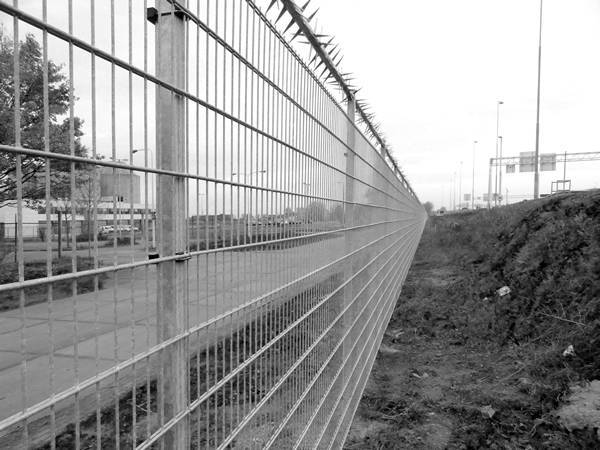

Wall spikes

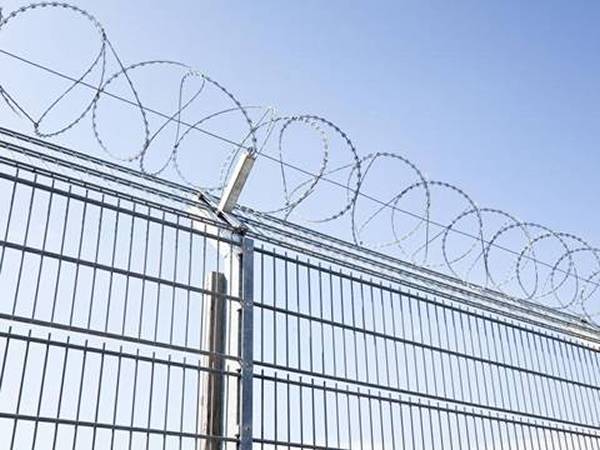

Razor wire


Our 358 high security fence is hugely flexible for a wide range of high security locations, including but not limited to, schools, industrial and commercial sites, police stations, prisons, government agencies, airports, railways and seaports, etc.


Our professional sales representatives will provide you the suggestions of wire mesh fence and applications. Just tell us your requirements and your problems, we will help you solve them.
