Best BRC Fences in China with Long Service Life & Less Maintenance

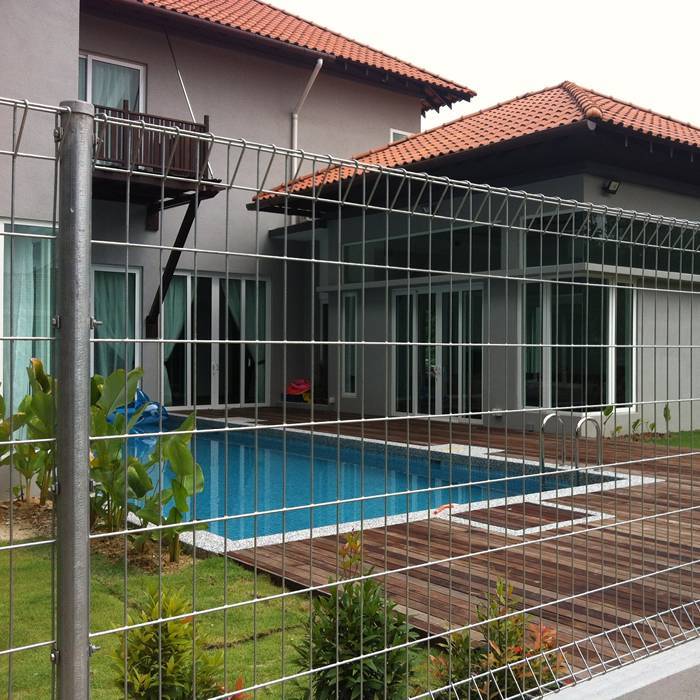

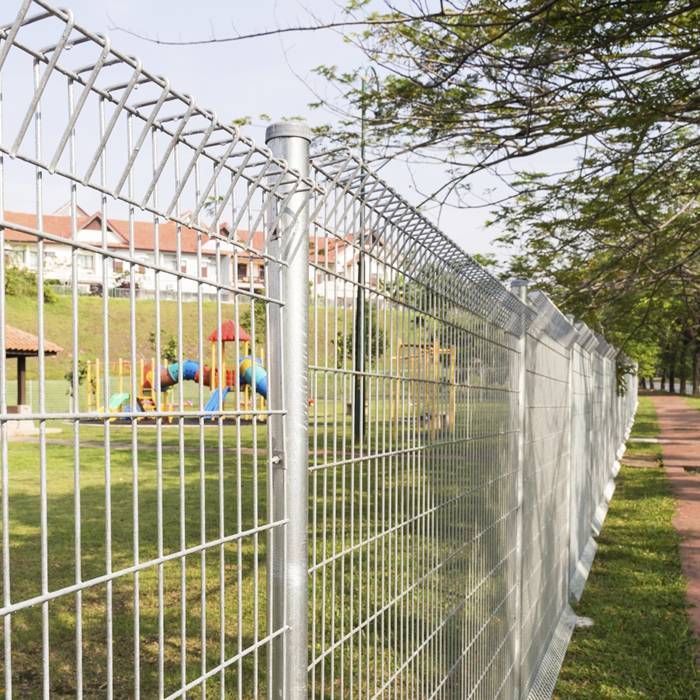

BRC fence, also known as roll top fence, is a kind of specially designed welded wire mesh fence with unique top and bottom “rolled” edges. It is manufactured from high tensile steel wires that are welded together and bent to form a triangular roll top surface at its top and bottom to provide a firm structure and accurate mesh openings. Its rolled edges not only offer an authentic user-friendly surface, but also give maximum rigidity and excellent visibility. Currently, it is very popular among Singapore, Japan, South Korea and Southeast Asia regions and is mainly used as security fence or barriers in, including but not limited to, parks, schools, playgrounds, factories, parking lots, residential communities, etc.



  • Roll top edges provides both beautiful appearance and rigid structure.
  • Welded joints ensure the firm structure and long service life.
  • High quality raw materials and galvanized and powder coating treatment ensure our BRC fence has excellent corrosion and rust resistance performance and great weatherproof performance.
  • The mesh opening of the BRC fence panels provides excellent visibility and security.
  • All colors are available in Ral to adapt to most environments.
  • Less maintenance and long service life.

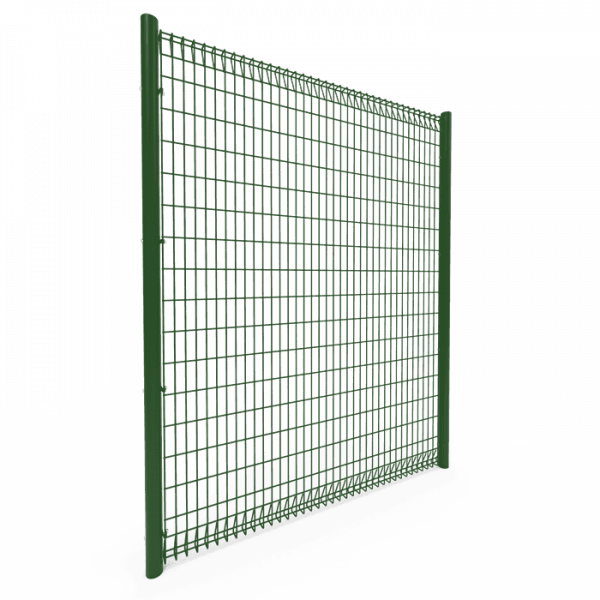

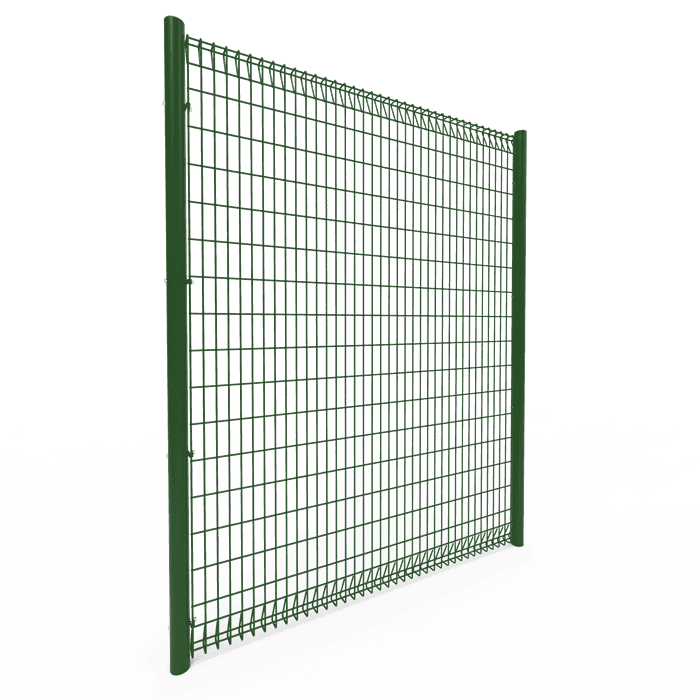

A> Height:900–2400 mm

B> Width:1500–3000 mm

C> Wire Diameter:4.0 mm, 4.5 mm, 5.0 mm, 6.0 mm

D> Mesh Opening:50 Γ— 150 mm, 50 Γ— 200 mm, 50 Γ— 300 mm

E> Clamp:metal clamp / anti-UV plastic clamp

F> Post:Round post (48 OD Γ— 1.5/2.0 mm, 60 OD Γ— 1.5/2.0 mm);
Square post (50 Γ— 50 Γ— 1.5/2.0 mm, 60 Γ— 60 Γ— 1.5/2.0 mm, 80 Γ— 80 Γ— 1.5/2.0 mm);
Rectangular post (40 Γ— 60 Γ— 1.5/2.0 mm, 40 Γ— 80 Γ— 1.5/2.0 mm, 60 Γ— 80 Γ— 1.5/2.0 mm, 80 Γ— 100 Γ— 1.5/2.0 mm)

G> Post Cap:metal cap/anti-UV plastic cap


  • All colors are available in Ral;
  • Other materials and specifications are available upon request.


Surface Treatment

According to the surface treatment, our BRC fence can be divided into two types as shown below.

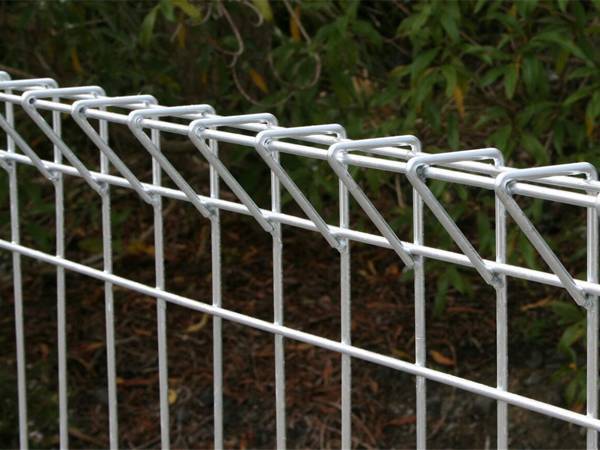

Galvanized BRC fence

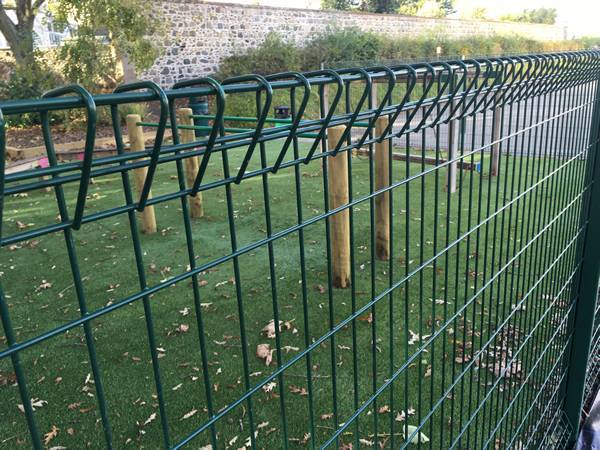

Powder coating BRC fence

Components & Accessories

The main components and connection methods of our BRC fence are as shown below.

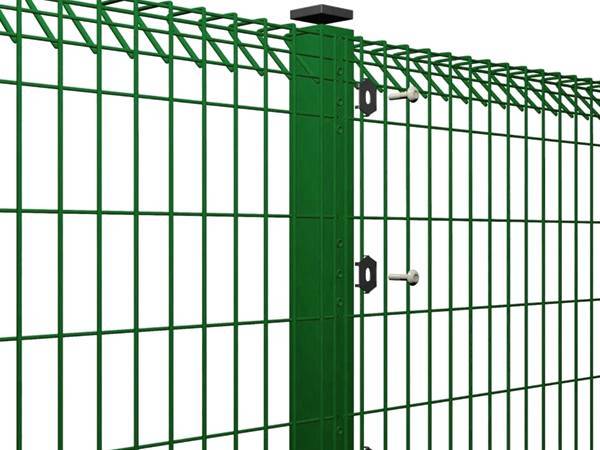

Square post connection

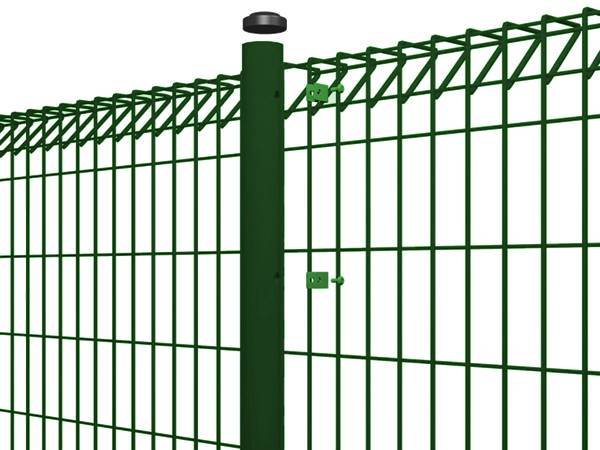

Round post connection


Optional Accessorie

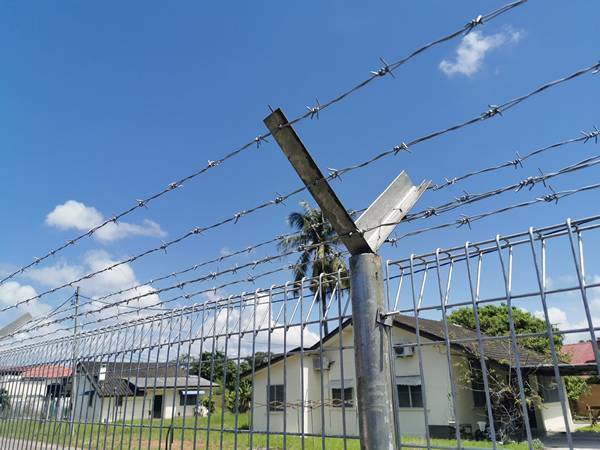

Barbed wires

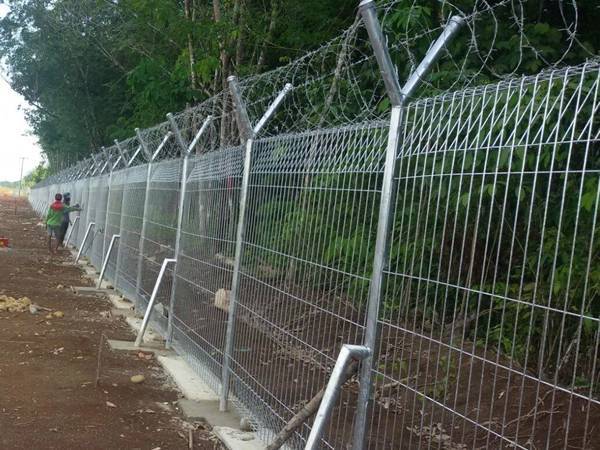

Razor wires



Our professional sales representatives will provide you the suggestions of wire mesh fence and applications. Just tell us your requirements and your problems, we will help you solve them.
