Double Swing Gates for Chain Link Fence, Welded Fence & Temporary Fence
Double swing gate is a popular choice when enough space is available for entry purpose. Its double leaf design allows its opening angle up to 180° while its standard widths up to 10 m and heights up to 3 m ensure pedestrians and vehicles can pass through the fence easily. Generally, it is attached to round or square post and then connected with adjustable hinges. Besides, it can work with either manual or automation system to secure your property from unauthorized access. We have a variety of double swing gates for chain link fence, curvy welded fence, 358 high security fence, steel fence, palisade fencing and Australia temporary fence for you to choose from.
Description
Specification

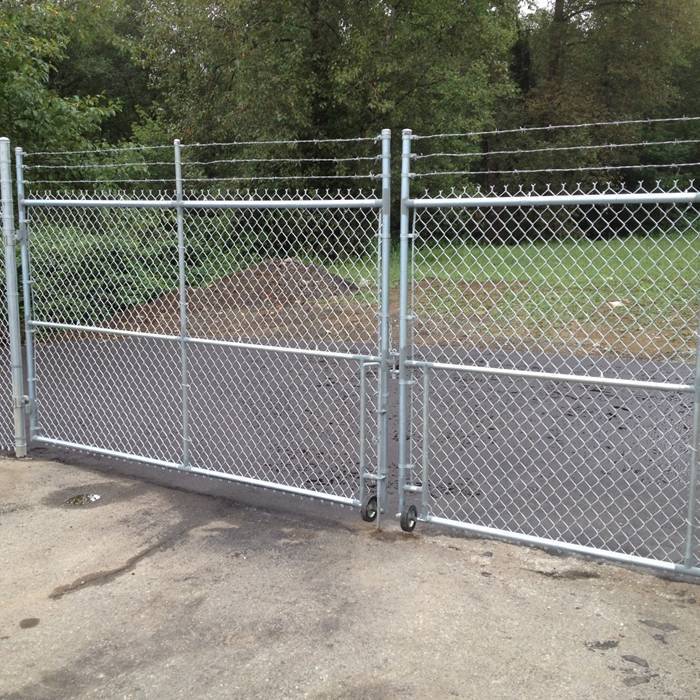

Chain link fence double swing gate
Match with chain link fence
| Height | 1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m |
|---|---|
| Width | 4.0 m, 4.8 m, 6.0 m, 10.0 m |
| Mesh Size | 50 × 50 mm, 60 × 60 mm, 80 × 80 mm |
| Wire Diameter | 3.0–6.0 mm |
| Post (round) | 48 mm OD, 60 mm OD |
| Frame Tube | 32 mm OD, 38 mm OD, etc. |
358 high security fence double swing gate
Match with 358 high security fence
| Height | 1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m |
|---|---|
| Width | 4.0 m, 4.8 m, 6.0 m, 10.0 m |
| Mesh Size | 76.2 × 12.7 mm (3″ × 0.5″) |
| Wire Diameter | 3.2 mm, 4.0 mm |
| Post (square) | 60 × 60 mm, 80 × 80 mm, 100 × 100 mm |
| Frame Tube | 20× 20 mm, 25× 25 mm, 30 × 30 mm |
| Surface Treatment | Hot dipped galvanized, powder coating |
358 high security fence single swing gate
Match with 358 high security fence
| Height | 1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m |
|---|---|
| Width | 0.8 m, 1.0 m, 1.2 m, 1.5 m, 2.0 m |
| Mesh Size | 76.2 × 12.7 mm (3″ × 0.5″) |
| Wire Diameter | 3.2 mm, 4.0 mm |
| Post (square) | 60 × 60 mm, 80 × 80 mm, 100 × 100 mm |
| Frame Tube | 25× 25 mm, 30 × 30 mm |
| Surface Treatment | Hot dipped galvanized, powder coating |
Steel fence double swing gate
Match with steel fence
| Height | 1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m |
|---|---|
| Width | 4.0 m, 4.8 m, 6.0 m, 10.0 m |
| Vertical Tube Space | 100 mm, 120 mm, 150 mm, 170 mm |
| Tube Size | 15 × 15 mm, 19 × 19 mm, 30 × 30 mm, 40 × 40 mm |
| Post (square) | 60 × 60 mm, 80 × 80 mm, 100 × 100 mm |
| Surface Treatment | Hot dipped galvanized, powder coating |
Palisade fence double swing gate
Match with palisade fencing
| Height | 1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.0 m |
|---|---|
| Width | 4.0 m, 4.8 m, 6.0 m, 10.0 m |
| Angle Steel | 40 × 40 mm, 50 × 50 mm |
| Pale Size (W/D) | 62 mm, 65 mm, 70 mm |
| Post (square) | 60 × 60 mm, 80 × 80 mm, 100 × 100 mm |
| Surface Treatment | Hot dipped galvanized, powder coating |
Australia temporary fence double swing gate
Match with Australia temporary fence
| Height | 2.1 m |
|---|---|
| Width | 5.0 m |
| Mesh Size | 50 mm × 100 mm, 50 mm × 150 mm, 75 mm × 100 mm, 75 mm × 150 mm |
| Wire Diameter | 3.0 mm, 3.5 mm, 3.8 mm, 4.0 mm, 5.0 mm |
| Frame Tube | 32 mm OD, 38 mm OD, etc. |
| Surface Treatment | Hot dipped galvanized |
